Cornell 6NHTA Parts

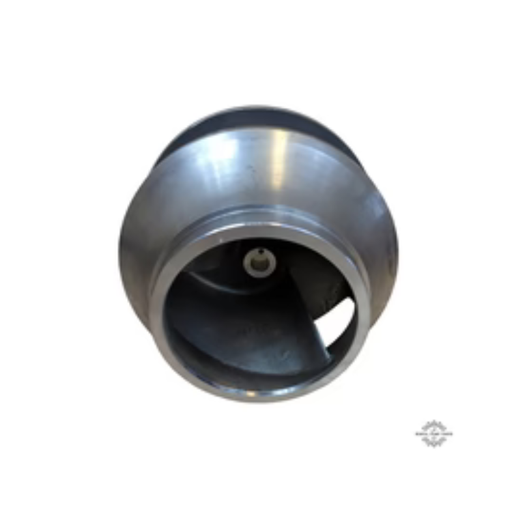

Model 6NHTA D25798-3-SZ-R Impeller 6NHTA 12.00" max diameter Stainless Steel

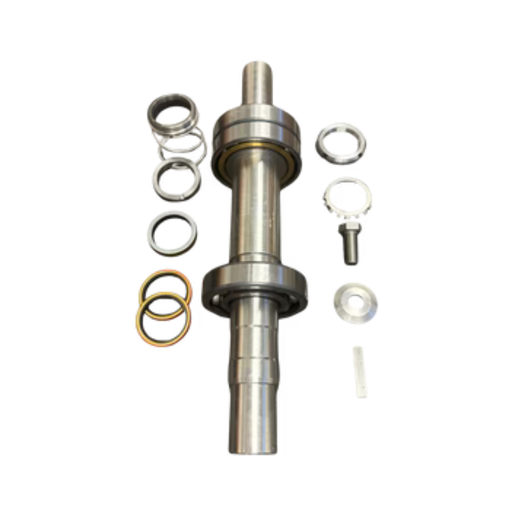

Loaded Shaft Kit Cornell 6NHTA Shaft Bearings (loaded on Shaft) Bearing Nut (Loaded on Shaft) Bearing Washer (Loaded on Shaft) Impeller Washer Imp...

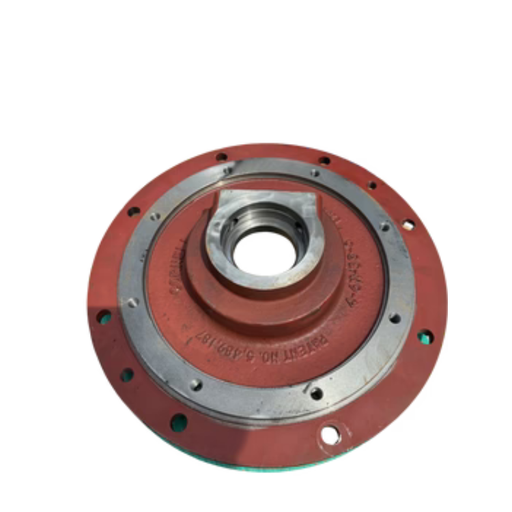

Back Plate for Cornell 6NHTA BACKPL 4-6N-38-5 T1 & T2 SGL. D5278-38-CP Mechanical Seal must be replaced when changing Back Plate

Bare Shaft for Cornell 6NHTA Stainless Steel Shaft EM18, R-P, D5330 BRKT B4493-14-SP

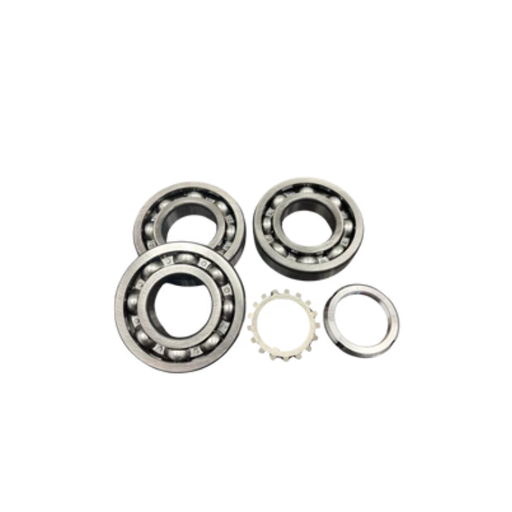

Cornell 6NHTA Bearing Kit Includes 2- 18DBDE Bearings (A15019H-20)  18B/18DBPE Bearing (A16814)-20) Lock Nut (A14566M-636-SK) Lock Washer (A14566M...

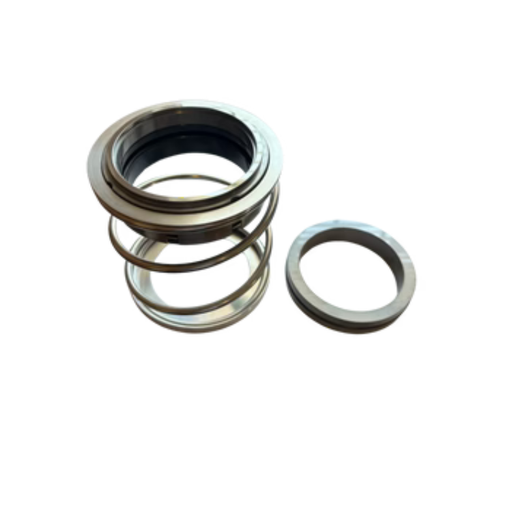

Complete Seal Kit Cornell 6NHTH Includes A16421D-40 Mechanical Seal A21832Q-18 Cassette Seal A17073B-18 Lip Seals (Requires 2)

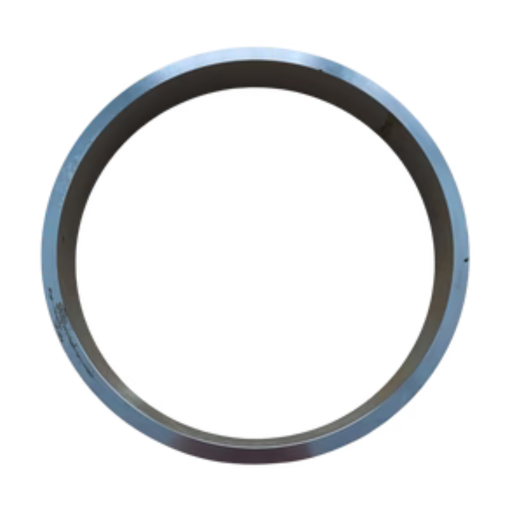

Model 6NHTA  WEAR RING, 7.50 X 6.77 X .88 OPEN CL A16677-6-SS Stainless Steel

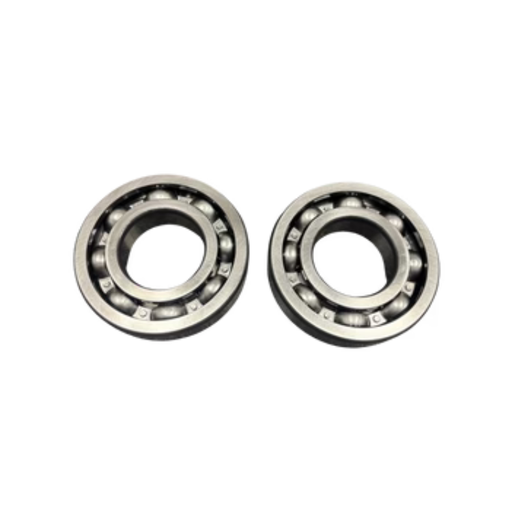

Model 6NHTA  18DBDE Bearings (As Required) A15019H-20 Set of 2 OEM Replacement for Wet end Bearings Recommend Replacing Drive End Bearing A16814O...

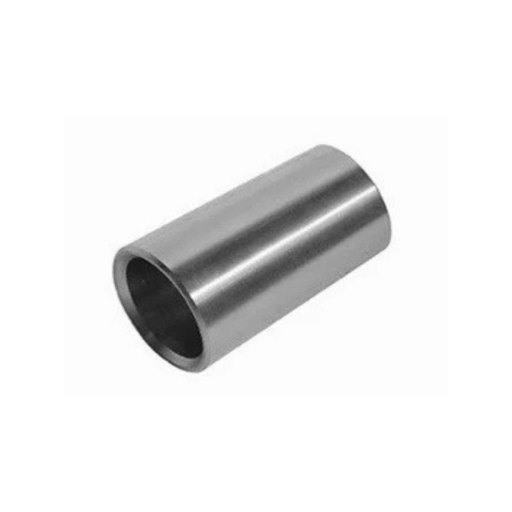

Model 6NHTA Sleeve 2.50 X 2.12 X 2.00 A20481-15-SS

Model 6NHTA  Wear Ring, 7.50 X 6.77 X .88 Open CL A16677-6

Model 6NHTA  18B/18DBPE Bearing (As Required) A16814O-20 OEM Replacement for Drive end Bearing Recommend Replacing Wet End Bearings A15019H-20 (S...

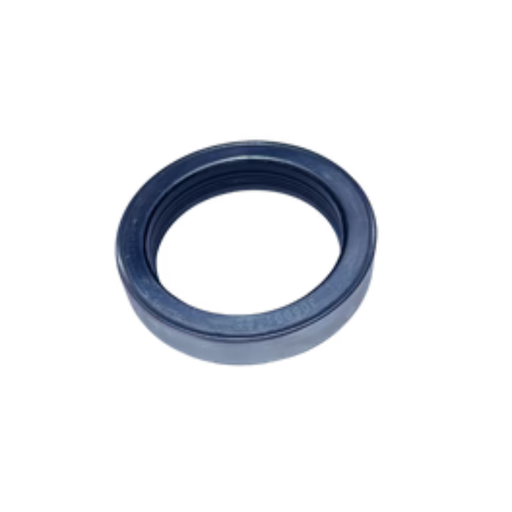

Model 6NHTA Cassette Seal A21832V-18 Rated for 2800RPM Max

Vacuum Pump Belt  A17450B-221 BELT 450H100 464628 (DODGE) Side Mount

Fits Cornell Pump 6NHTA Cassette Seal A21832Q-18

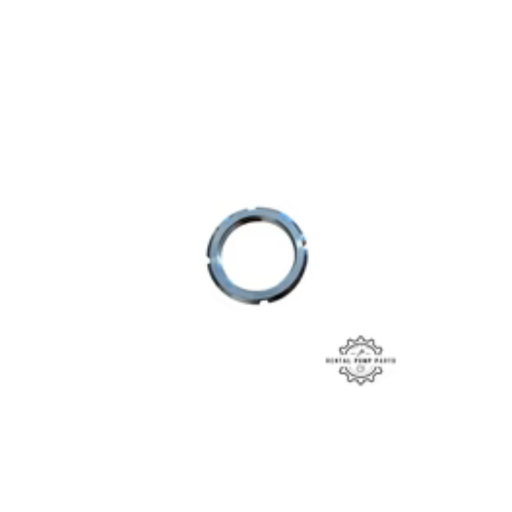

Model 6NHTA Shaft Nut  AN-16  OEM Replacement

Model 6NHTA Impeller Bolt Socket Head A14383-12-SD Washer Not Included (A20507-13-ST) Must Discard Bolt After Removal (Cannot reuse)

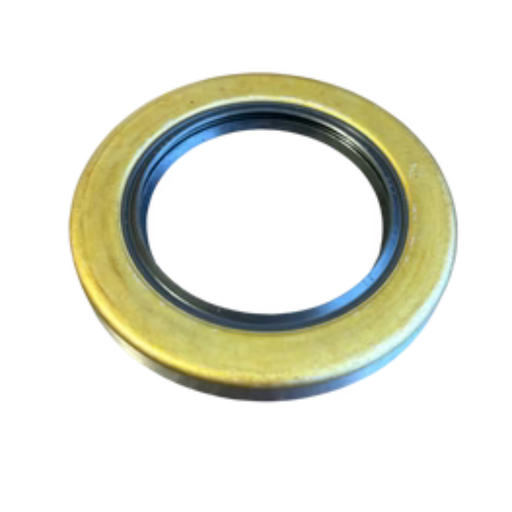

Lip Seal for Cornell Pumps 6NHTA A17073B-18 LIP SEAL  2 EA needed

Model 6NHTA Impeller Shim Set of 3 2.00 x 3.00 x .015

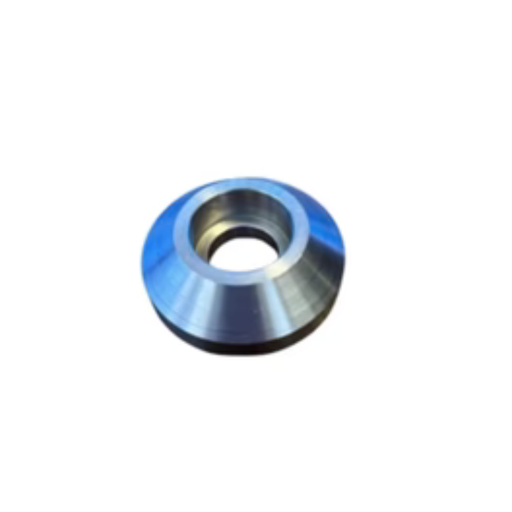

Model 6NHTA Impeller Washer A20507-13-ST Bolt not included (A14383-12-SD)

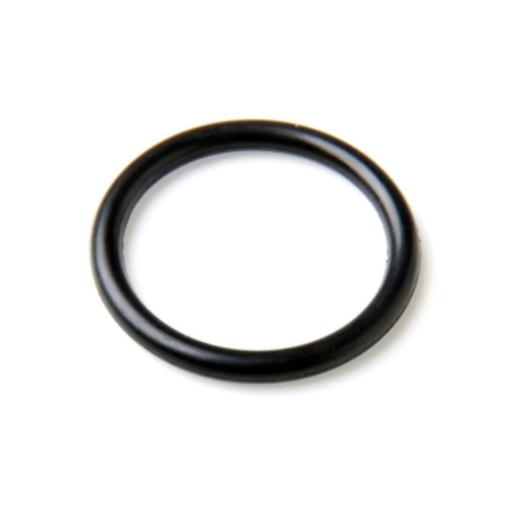

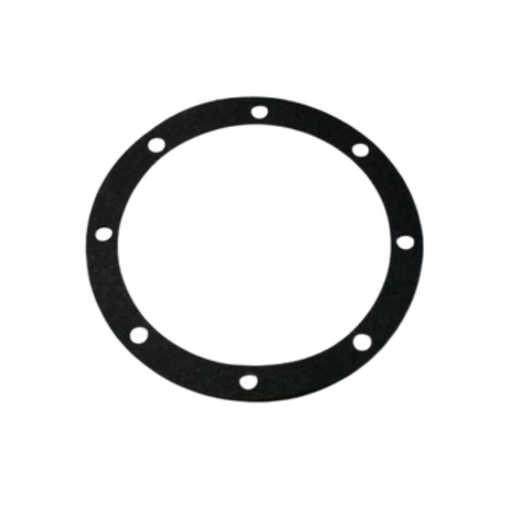

Model 6NHTA Volute Gasket

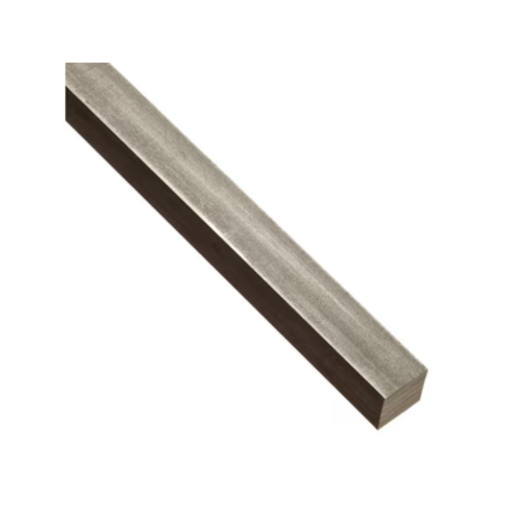

Model 6NHTA Impeller key  .50 x 3.00

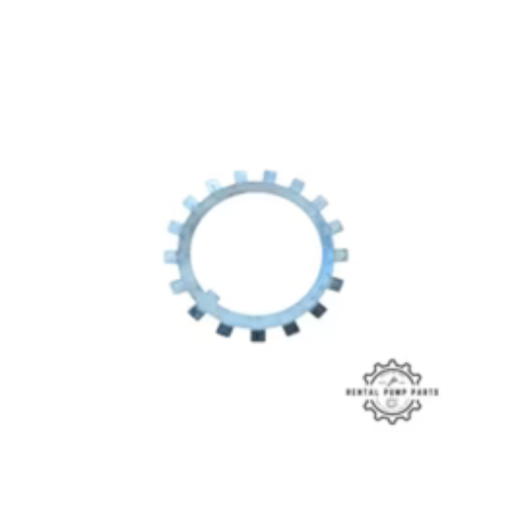

Model 6NHTA Bearing Washer W-16 OEM Replacement
